Alipay

Alipay

Payment process

The payment interface adopts server-side integration, namely Server To Server mode. The specific process is as follows:

1. The user places an order on the mini program/APP/browser website
2. The online store submits the order information to this interface
3. FireAnt submit the order to the Alipay server, and then return the result of creating the order and redirect url to the online store
4. The online store redirects to the Alipay payment link and calls up Alipay payment (different payment methods are called up in different scenarios, such as displaying payment QR codes in PC browser and calls up Alipay applications in mobile browser)
5. After the user completes the payment, FireAnt will notify the online store of the result through notifyUrl

Among them, steps 2-3 involve the server submitting data and do not involve the browser. There may be some differences in the specific programming language used, Payment Submission Example。

Form parameter format description

Name	Type	Max Length	Required	Description
Order information
merNo	String	5	Yes	Merchant ID number Explanation: PSP assigns a unique identifier to merchants
gatewayNo	String	8	Yes	Merchant gateway number Explanation: PSP assigns a unique identifier to sub merchants
orderNo	String	50	Yes	Merchant Order Number Rule: Merchant order number. Unique identifier, do not duplicate order numbers in the same online store system
orderCurrency	String	3	Yes	Order currency Explanation: 3-digit ISO 4217 code, currency code can be found in the appendix.
orderAmount	String	10	Yes	Order amount Rule: No more than two decimal places
shipFee	String	100	No	Shipping fee Rule: No more than two decimal places
discount	String	100	No	discount Discounts default to negative values It can only be a number and is limited to 2 decimal places
goodsInfo	String	5000	Yes	Detailed information of goods Including the name, ID, unit price, and quantity of the goods Please refer to Appendix: Goods Information
Local payment information
paymentMethod	String	50	Yes	Payment method, fixed Alipay
tradeType	String	50	Yes	Transaction type WEB: PC website payment WAP: Mobile website payment APP: App payment MINI_APP: Mini program payment
limitPay	String	50	No	Specify payment method only MINI-APP requires specification, such as TRUEMONEY, ALIPAY_HK, TNG, ALIPAY_CN, GCASH, DANA, TOSS
ip	String	50	No	User IP
os	String	50	No	Operating System: IOS or ANDROID, provided under WAP or APP
Shipping information
shipFirstName	String	100	No	Consignee's first name
shipLastName	String	100	No	Consignee's last name
shipEmail	String	100	No	Consignee's email
shipPhone	String	100	No	Consignee's phone
shipCountry	String	100	No	Consignee's country ISO 3166-1 country code, such as US.
shipState	String	100	No	Consignee's state
shipCity	String	100	No	Consignee's city
shipAddress	String	100	No	Consignee's address
shipZip	String	100	No	Consignee's zip
Other information
notifyUrl	String	200	Yes	Asynchronous notification url. After the payment is completed, the platform will notify this address of the payment result through server-side POST. The asynchronous address will return OK upon receiving the request, otherwise it will return up to 3 times within a period of time
signInfo	String	32	Yes	Encrypt signature information Combine the payment submission parameters and then perform sha256 encryption. The specific parameter combination order is as follows, and the order cannot be changed：merNo + gatewayNo +orderNo + orderCurrency +orderAmount + notifyUrl + merKey(secret key, can be queried in the merchant's backend)，the order of these parameters cannot be modified, and there should be no spaces or + in between Please refer to Appendix: SHA256 Encryption
remark	String	500	No	Order remark information.

Payment Submission Example

java

OkHttpClient client = new OkHttpClient().newBuilder()
  .build();
MediaType mediaType = MediaType.parse("application/x-www-form-urlencoded");
RequestBody body = RequestBody.create(mediaType, "merNo=30000&gatewayNo=30000001&orderNo=12345678&orderCurrency=USD&orderAmount=100.00&goodsInfo=Good1-Name#,#123#,#50.00#,#2&paymentMethod=Alipay&tradeType=WAP&os=ANDROID&ip=127.0.0.1&notifyUrl=https://xxx.com/notifyurl&signInfo=61be55a8e2f6b4e172338b...");
Request request = new Request.Builder()
  .url("https://sandbox.fireantspay.com/AlipayInterface")
  .method("POST", body)
  .addHeader("Content-Type", "application/x-www-form-urlencoded")
  .build();
Response response = client.newCall(request).execute();

PHP

$curl = curl_init();

curl_setopt_array($curl, array(
  CURLOPT_URL => 'https://sandbox.fireantspay.com/AlipayInterface',
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => '',
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 0,
  CURLOPT_FOLLOWLOCATION => true,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => 'POST',
  CURLOPT_POSTFIELDS => 'merNo=30000&gatewayNo=30000001&orderNo=12345678&orderCurrency=USD&orderAmount=100.00&goodsInfo=Good1-Name%23%2C%23123%23%2C%2350.00%23%2C%232&paymentMethod=Alipay&tradeType=WAP&os=ANDROID&ip=127.0.0.1&notifyUrl=https%3A%2F%2Fxxx.com%2Fnotifyurl&signInfo=61be55a8e2f6b4e172338b...',
  CURLOPT_HTTPHEADER => array(
    'Content-Type: application/x-www-form-urlencoded'
  ),
));

$response = curl_exec($curl);

curl_close($curl);
echo $response;

Node

var request = require('request')
var options = {
  method: 'POST',
  url: 'https://sandbox.fireantspay.com/AlipayInterface',
  headers: {
    'Content-Type': 'application/x-www-form-urlencoded'
  },
  form: {
    merNo: '30000',
    gatewayNo: '30000001',
    orderNo: '12345678',
    orderCurrency: 'USD',
    orderAmount: '100.00',
    goodsInfo: 'Good1-Name#,#123#,#50.00#,#2',
    paymentMethod: 'Alipay',
    tradeType: 'WAP',
    os: 'ANDROID',
    ip: '127.0.0.1',
    notifyUrl: 'https://xxx.com/notifyurl',
    signInfo: '61be55a8e2f6b4e172338b...'
  }
}
request(options, function (error, response) {
  if (error) throw new Error(error)
  console.log(response.body)
})

JavaScript

var settings = {
  url: 'https://sandbox.fireantspay.com/AlipayInterface',
  method: 'POST',
  timeout: 0,
  headers: {
    'Content-Type': 'application/x-www-form-urlencoded'
  },
  data: {
    merNo: '30000',
    gatewayNo: '30000001',
    orderNo: '12345678',
    orderCurrency: 'USD',
    orderAmount: '100.00',
    goodsInfo: 'Good1-Name#,#123#,#50.00#,#2',
    paymentMethod: 'Alipay',
    tradeType: 'WAP',
    os: 'ANDROID',
    ip: '127.0.0.1',
    notifyUrl: 'https://xxx.com/notifyurl',
    signInfo: '61be55a8e2f6b4e172338b...'
  }
}

$.ajax(settings).done(function (response) {
  console.log(response)
})

CURL

curl --location 'https://sandbox.fireantspay.com/AlipayInterface' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'merNo=30000' \
--data-urlencode 'gatewayNo=30000001' \
--data-urlencode 'orderNo=12345678' \
--data-urlencode 'orderCurrency=USD' \
--data-urlencode 'orderAmount=100.00' \
--data-urlencode 'goodsInfo=Good1-Name#,#123#,#50.00#,#2' \
--data-urlencode 'paymentMethod=Alipay' \
--data-urlencode 'tradeType=WAP' \
--data-urlencode 'os=ANDROID' \
--data-urlencode 'ip=127.0.0.1' \
--data-urlencode 'notifyUrl=https://xxx.com/notifyurl' \
--data-urlencode 'signInfo=61be55a8e2f6b4e172338b...'

Alipay Interface Response

Response data description

The payment return data is in XML format, which needs to be parsed first before determining the payment result of the order. The specific XML parameters are as follows: Payment Response Example.

Parameter format description

Name	Type	Max Length	Description
merNo	String	5	Merchant ID number Explanation: PSP assigns a unique identifier to merchants
gatewayNo	String	8	Merchant gateway number Explanation: PSP assigns a unique identifier to sub merchants
tradeNo	String	50	Merchant Order Number
orderNo	String	50	Transaction order number. Unique identifier of the order generated by PSP
orderCurrency	String	3	Order currency
orderAmount	String	10	Order amount
orderStatus	String	1	Transaction status： -1: Pending 0: Failed 1: Success
orderInfo	String	100	Payment result description
billAddress	String	100	Billing descriptor Return the billing descriptor of the transaction when the payment is successful
returnType	String	1	Return type 1: Browser real-time return 2: Server real-time return 3: Server asynchronous return The data format returned by the server in real-time is XML, while the data format returned by the server asynchronously and by the browser is NVP.
orderErrorCode	String	50	Error Code Error codes corresponding to various reasons for failure. When successful, it is usually 00.
paymentMethod	String	50	Payment method, fixed Alipay
signInfo	String	32	Encrypt signature information Combine the payment submission parameters and then perform sha256 encryption. The specific parameter combination order is as follows, and the order cannot be changed. sha256(merNo + gatewayNo + tradeNo+orderNo + orderCurrency + orderAmount + orderStatus+orderInfo + merKey)
remark	String	500	Remark
redirectUrl	String	500	Redirect url. Only exists when the transaction is returned for processing , and the user redirects to this link for payment Description of redirectUrl

Payment Response Example

Transaction Pending, merchants need to proceed with the next steps:

<?xml version="1.0" encoding="UTE-8"?>
<respon>
    <merNo>10000</merNo>
    <gatewayNo>10000001</gatewayNo>
    <tradeNo>HY024111317280195515514</tradeNo>
    <orderNo>12345</orderNo>
    <orderAmount>10.00</orderAmount>
    <orderCurrency>USD</orderCurrency>
    <orderStatus>-1</orderStatus>
    <orderErrorCode>PENGDING</orderErrorCode>
    <orderInfo></orderInfo>
    <paymentMethod>Alipay</paymentMethod>
    <returnType>2</returnType>
    <billAddress></billAddress>
    <redirectUrl>https://open-sea.alipayplus.com/api/...</redirectUrl>
    <signInfo>C6EB2353B92CFEA3698CE2F5332CB882...</signInfo>
    <remark></remark>
</respon>

Transaction failed (parameter validation failed)：

<?xm1 version="1.0" encoding="UTE-8"?>
<respon>
    <merNo>10000</merNo>
    <gatewayNo>10000001</gatewayNo>
    <tradeNo>HY024111317280195515514</tradeNo>
    <orderNo>12345</orderNo>
    <orderAmount>10.00</orderAmount>
    <orderCurrency>USD</orderCurrency>
    <orderStatus>0</orderStatus>
    <orderErrorCode>I0133</orderErrorCode>
    <orderInfo>交易类型只能为WEB,WAP,APP,MINI_APP</orderInfo>
    <paymentMethod>Alipay</paymentMethod>
    <returnType>2</returnType>
    <billAddress></billAddress>
    <redirectUrl></redirectUrl>
    <signInfo>C6EB2353B92CFEA3698CE2F5332CB882...</signInfo>
    <remark></remark>
</respon>

Transaction failed (Alipay server error)：

<?xm1 version="1.0" encoding="UTE-8"?>
<respon>
    <merNo>10000</merNo>
    <gatewayNo>10000001</gatewayNo>
    <tradeNo>HY024111317280195515514</tradeNo>
    <orderNo>12345</orderNo>
    <orderAmount>10.00</orderAmount>
    <orderCurrency>USD</orderCurrency>
    <orderStatus>0</orderStatus>
    <orderErrorCode>PARAM_ILLEGAL</orderErrorCode>
    <orderInfo>env.terminalType should be correct Type.</orderInfo>
    <paymentMethod>Alipay</paymentMethod>
    <returnType>2</returnType>
    <billAddress></billAddress>
    <redirectUrl></redirectUrl>
    <signInfo>C6EB2353B92CFEA3698CE2F5332CB882...</signInfo>
    <remark></remark>
</respon>

Asynchronous notification (Success):

orderErrorCode=00&signInfo=4EF256E175307636299F6559C3F89CD94585D3E42DA33985BE400DCBE5FFF779&orderNo=12345&gatewayNo=10000001&tradeNo=HY024111317280195515514&orderCurrency=USD&orderStatus=1&remark=备注&orderAmount=10.00&merNo=10000&billAddress=LARTIN&orderInfo=Approved&paymentMethod=Alipay&returnType=3

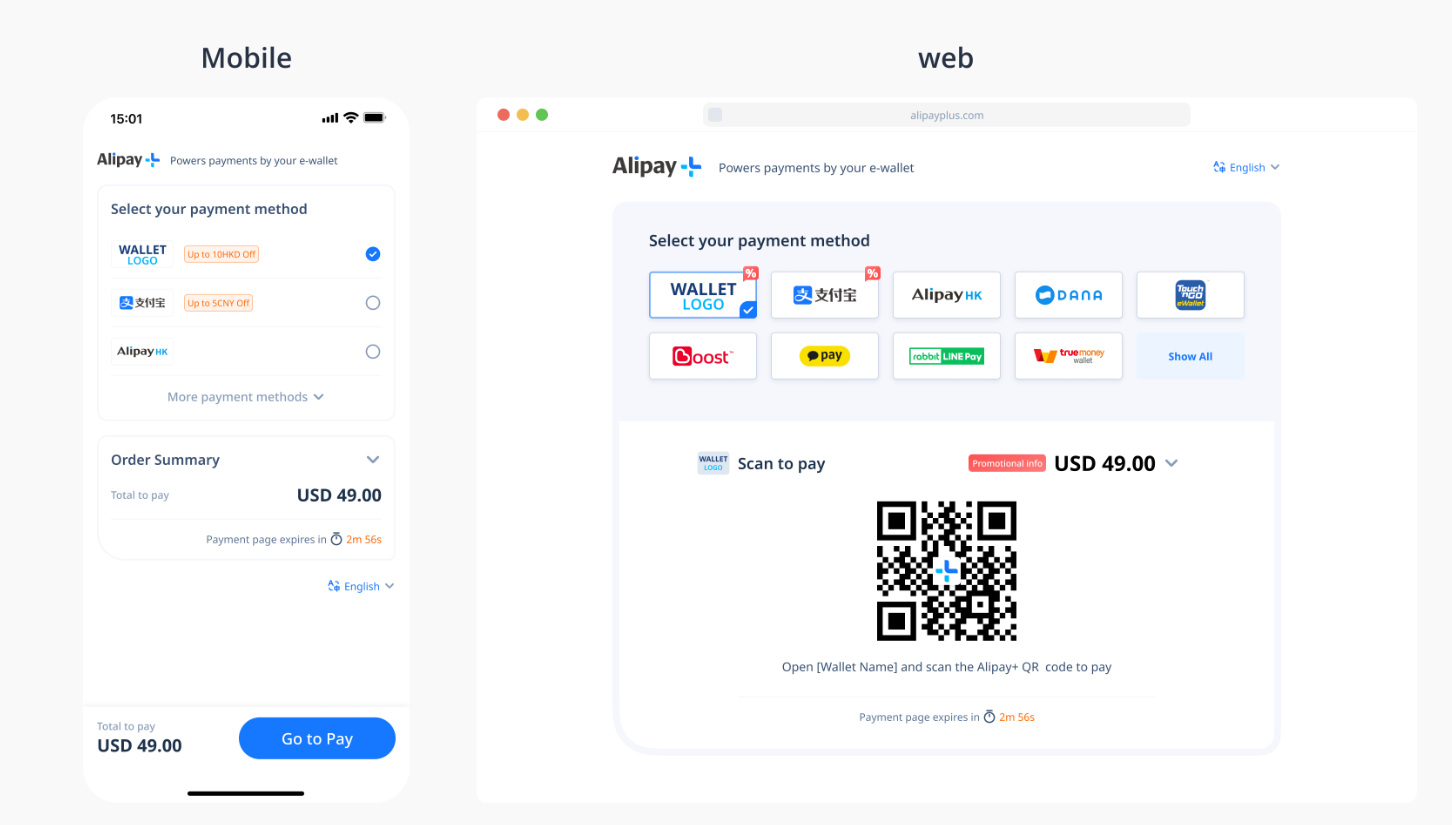

Description of redirectUrl

RedirectUrl is a Alipay payment link, which will show different payment effects in different scenarios.
